Creating Activities

To create a record you will first need to click the +Add button within the tab that the feature is contained.

From the drop down on the top, select the activity that you would like to create.



Begin drawing the activity by clicking on the map

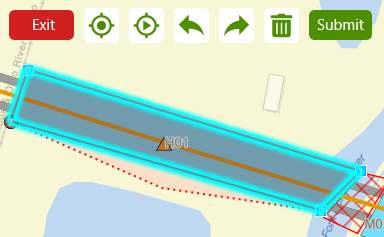

When drawing you’ll notice there are some actions you can use at the top of the map view.

 Create point at current location

Stream points from GPS

Back button will remove last point

Redo will add point back on

Discard will start the sketch over.

Once satisfied that the sketch is complete, update any details on the left. Click  submit to commit  your new activity. Clicking Exit while in this view will discard your changes.

Updating Geometry on Existing Activities

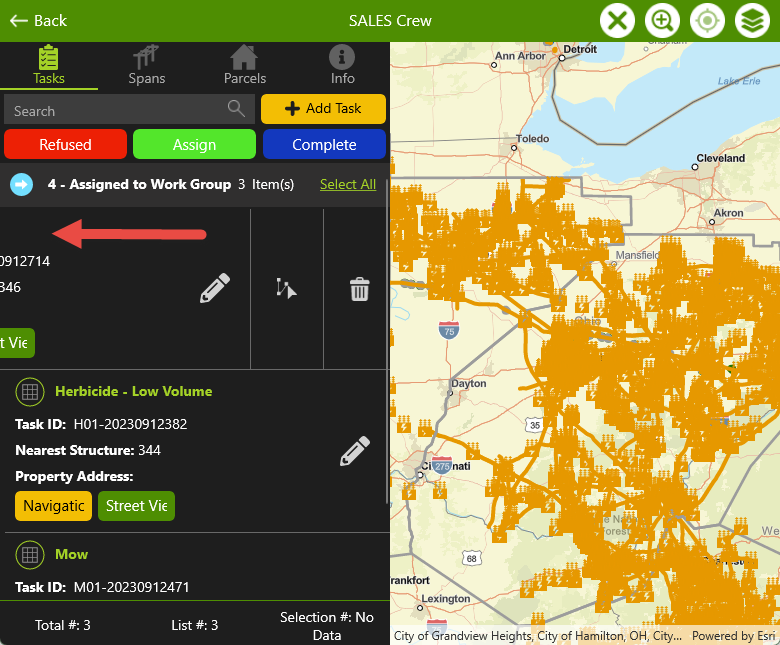

From the Activity List drag the row to the left.

Click on the arrow icon to edit geometry

Note: The trash can  icon will delete the activity

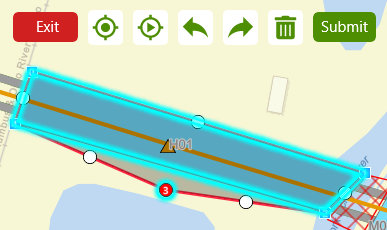

Click on the point you wish to move and drag or click its new location.

Once complete you can click submit to commit the adjustments. Clicking exit will discard all changes.

Note: The editing functionality presented at the top of the map view works the same as described in the Create Activity section.
