Lookups page

Lookup fields and lookups

A lookup field is a field in a project’s widget (table, feature attributes, etc.) whose type is determined as a lookup type.

A lookup is a configured item that represents a field that creates a relationship between two tables by allowing data in one table to point to records in another table.

In other words, a lookup is a field in a table whose value is retrieved from another table.

To make lookup fields work, specific lookups should be configured on Lookups page.

Lookups page

Represent all lookups that are created for corresponding lookup fields in the projects.

The Add Lookup button allows to create a new lookup.

Lookups within one workspace are available for each project within Manager and Mobile.

The user can add any number of new lookups.

Lookup types

Lookup type	Description	Usage
Static	Not related to any specific table, but represents a table itself Contains two columns - Key and Display Value Display Value is used as a visible dropdown options/field values in Clearion Web Key is used as a value which will be set in a field when a user selects a dropdown option	Dropdown options Field values in Tables
Domain	A domain lookup represents a database field that stores a set of values These values can be used as dropdown options	Dropdown options Field values in Tables
Table	Table lookup represents a set of unique values from one specific column in a particular table The selection of unique values is done on the client side (Studio) Table Lookups support mapping display and value fields	Dropdown options
Unique Values	Unique Values lookup represents a set of unique values from one or multiple columns in one or multiple tables The selection of unique values is done on the server side (Portal) Unique values lookups support multiple source tables and fields	Dropdown options

Lookups configuration

Static lookups - configuration

Tab	Option	Required?	Description	Visualization

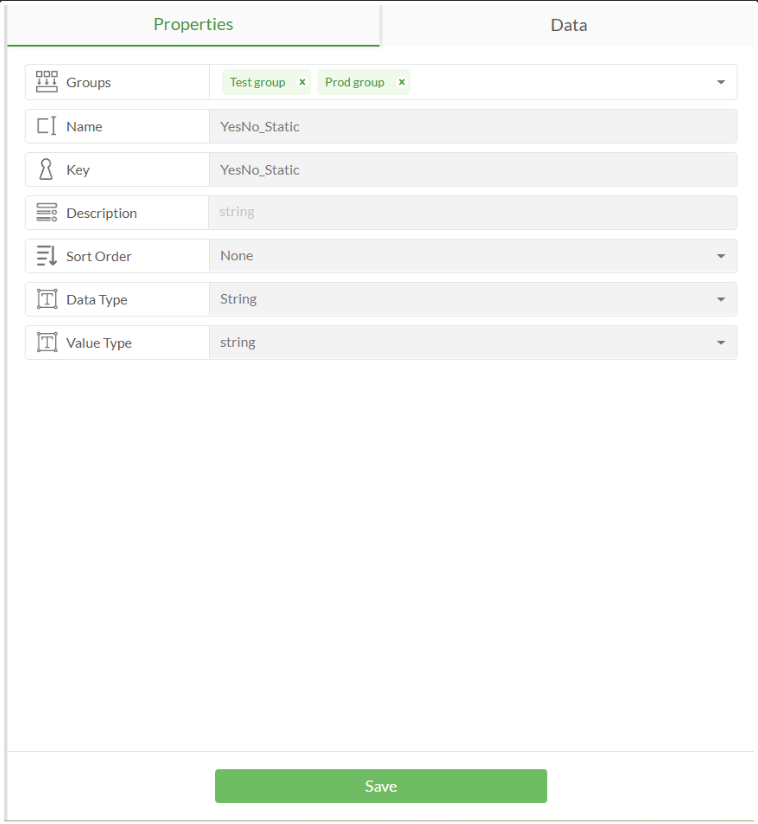

Properties	Groups	Yes	Select a Group where the created item will be stored
Properties	Name	Yes	A visual name that the user can see in a list of lookups in the field Can be changed without affecting other parts of the configuration
Properties	Key	Yes	The key field determines the uniqueness of the created item; when merging and cloning groups or projects, items are sorted according to the key field Сhanging the key affects other parts of the configuration, namely, the field in which this lookup was selected is cleared if the key is changed
					Properties	Description	No	The field is informative and describes the lookup purpose
					Properties	Sort Order	No	Sorts the field values
					Properties	Data Type	No	Mobile configuration field
					Properties	Value Type	Yes	Must match the desired format of the data being sent

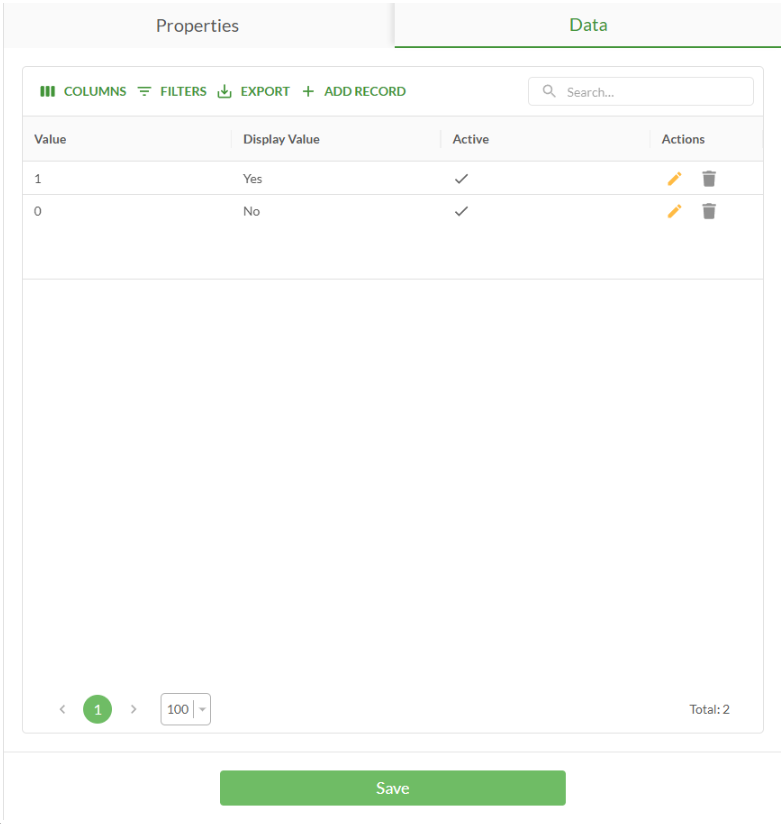

Data	Columns	No	Allows to hide or display columns in the Data tab
Data	Filters	No	Allows to filter data in the Data tab
Data	Export	No	Allows to export as a document

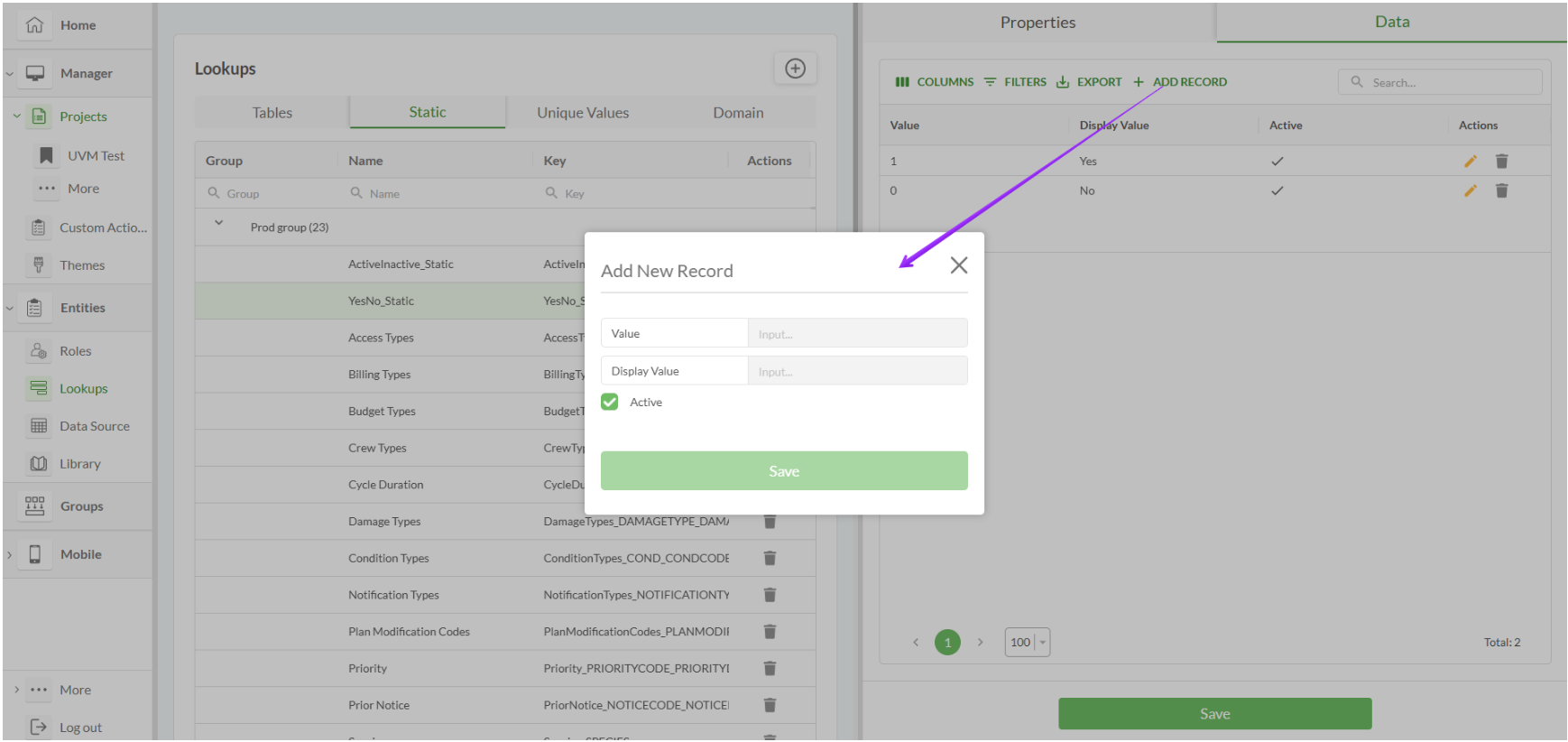

Data	Add Record	Yes	Open a form for the Value and Display value creation Display Value represents a value that will be displayed for users Value represents a value that will be set in a feature table field when a Display Value is selected Active If true, then the option is available in Clearion Web dropdowns If false, then the option is not available in Clearion Web dropdowns

Static lookups - additional options

Tab	Option	Description	Visualization
Properties	Import Lookup - Soft Overwrite	Imports a JSON file and creates a new Static lookup with the information from a file To import a JSON it should be previously exported from a Table lookup Soft Overwrite means that the previously exported lookup receives a ‘(duplicated)’ mark in the Key field, and a new Static lookup is automatically populated in the field where the exported lookup was used When importing a table lookup file only Value Field Name will be added to a new lookup
				Properties	Import Lookup - Hard Overwrite	Imports a JSON file and creates a new Static lookup with the information from a file To import a JSON it should be previously exported from Table lookup Hard Overwrite means that the previously exported lookup is deleted and a new Static lookup automatically populated in the field where the exported lookup was used When importing a table lookup file only Value Field Name will be added to a new lookup

Domain Lookups - configuration

Option	Required?	Description	Visualization
Name	Yes	Visual name that the user can see in a list of lookups in the field Сan be changed without affecting other parts of the configuration
Key	Yes	The key field determines the uniqueness of the created item; when merging and cloning groups or projects, items are sorted according to the key field Сhanging the key affects other parts of the configuration, namely, the field in which this lookup was selected is cleared if the key is changed
Group	Yes	Select a Group where the created item will be stored
Description	No	The field is informative and describes the lookup purpose
Table Name	Yes	Source table name Table should be added to a Data Source > Tables in advance
Field	Yes	Field from the source table The field must contain the list of domain values in the portal table
Sort Order	No	Sorts the field values

Domain Lookups - additional options

Tab	Option	Description	Visualization
Properties	Replace Widget	Replaces Lookup A with Lookup B for all widgets in a project where Lookup A was applied

Table Lookups - configuration

Tab	Option	Required?	Description	Visualization
Properties	Name	Yes	Visual name that the user can see in a list of lookups in the field Сan be changed without affecting other parts of the configuration
Properties	Key	Yes	The key field determines the uniqueness of the created item; when merging and cloning groups or projects, items are sorted according to the key field Сhanging the key affects other parts of the configuration, namely, the field in which this lookup was selected is cleared if the key is changed
Properties	Group	Yes	Select a Group where the created item will be stored
Properties	Sort Order	No	Sorts the field values
Properties	Table Name	Yes	Source table name Table should be added to a Data Source > Tables in advance
Properties	Where Clause	No	Works as a SQL WHERE expression Allows to filter out records by a specific condition. For instance: STATUS = 1 will include only active statuses in the returned result NAME IS NOT NULL will not include records where NAME field is empty in the returned result 1=1 is set by default and includes all records in a result without applying any specific filter condition	Table Lookup fields Where Clause only Async Search + default Where Clause Async Search + specified Where Clause
Properties	Async Search	No	Works as a SQL LIKE expression A field name should be entered in the field In conjunction with the ‘Where Clause’ field, it works through logical operators AND/OR The logical operator is ignored if the Async Search field is empty
Properties	Value Field Name	Yes	Represents a column in a feature table whose values will be populated
Properties	Display Field Name	Yes	Represents a column in a feature table whose values will be displayed
Properties	Sub Fields	No	The list of the fields from the specified Feature Table
Properties	Description	No	The field is informative and describes the lookup purpose

Table Lookups - additional options

Tab	Option	Description	Visualization
Properties	Export to JSON	Exports a Lookup configuration to a JSON file This file can be imported via Import Lookup
Properties	Replace Widget	Replaces Lookup A with Lookup B for all widgets in a project where Lookup A was applied
Data	-	The Data tab displays data from the feature table specified in the lookup settings
Data	Services	Determines whether development, testing, staging or production data will be rendered
Data	Columns	Displaying columns specified in the Sub Fields
Data	Filters	Filtering options by different parameters
Data	Export	Exporting tables in different formats

Unique Values Lookups - configuration

Tab	Option	Required?	Description	Visualization
Properties	Name	Yes	A visual name that the user can see in a list of lookups in the field Сan be changed without affecting other parts of the configuration
Properties	Key	Yes	The key field determines the uniqueness of the created item; when merging and cloning groups or projects, items are sorted according to the key field Сhanging the key affects other parts of the configuration, namely, the field in which this lookup was selected is cleared if the key is changed
Properties	Group	Yes	Select a Group where the created item will be stored
Properties	Sort Order	No	Sorts the field values
Properties	Where Clause	No	Works as a SQL WHERE expression Allows to filter out records by a specific condition. For instance: STATUS = 1 will include only active statuses in the returned result NAME IS NOT NULL will not include records where NAME field is empty in the returned result 1=1 is set by default and includes all records in a result without applying any specific filter condition
Properties	Async Search	No	Works as a SQL LIKE expression A field name should be entered in the field In conjunction with the ‘Where Clause’ field, it works through logical operators AND/OR Logical operator is ignored if the Async Search field is empty
Properties	Fields	Yes	Clicking the + button opens the Table and Fields configuration
Properties	Table Name	Yes	Source table name Table should be added to the Data Source page in advance Multiple tables can be selected to pull values from different sources
Properties	Field	Yes	Represents the column in the table whose values will be retrieved These values will also be shown as dropdown options

Unique Values Lookups - additional options

Tab	Option	Description	Visualization
Properties	Replace Widget	Replaces Lookup A with Lookup B for all widgets in a project where Lookup A was applied
Properties	Import Lookup - Soft Overwrite	Imports a JSON file and creates a new Unique Values lookup with the information from a file To import a JSON it should be previously exported from a Table lookup Soft Overwrite means that a previously exported lookup receives a ‘(duplicated)’ mark in the Key field, and a new Unique Values lookup is automatically populated in the field where the exported lookup was used When importing a table lookup file only Value Field Name field will be added to a new lookup
Properties	Import Lookup - Hard Overwrite	Imports a JSON file and creates a new Unique Values lookup with the information from a file To import a JSON it should be previously exported from a Table lookup Hard Overwrite means that a previously exported lookup is deleted and a new Unique Values lookup is automatically populated in the field where exported lookup was used When importing a table lookup file only Value Field Name field will be added to a new lookup
Properties	Export to JSON	Exports a lookup as a JSON file
Properties	Import Lookup	Imports a JSON file and allows saving it without overriding the original lookup Key should be updated
