Feature Table

In terms of a portal, it refers to a tabular data structure that contains attribute information associated with geographic features. These features can be points, lines, or polygons representing real-world entities such as buildings, roads, or parcels.

It is a table that displays data from the portal and also contains settings that expand the functionality of the portal table.

Field	Description	Visualization
Name	Can be set any name Name will not be visible in Clearion Web
Sources	Sources represent a portal table or tables the data of which will be displayed in the Feature Table widget Source table should be initially added to a Data Source > Feature Tables to be populated in the Source dropdown
Table Configuration	Query Parameters Where - query which filters records that will be displayed in the table Default state - 1=1 which means where true and displays all features from the portal feature table Order By Fields - determines the order of the feature table entries Default state - by OBJECTID Return Geometry - determines whether or not spatial information (the geometry) associated with geographic features will be included when querying or retrieving data from a table Default state - true
	Grouping Group By - groups table records by a specified field Title For Empty Values - if the field by which grouping is enabled has empty values, this setting allows to group them into one category with a specific name Collapsed - if true then grouped records are collapsed by default
	Table Settings Sorting - displays a button at the header of each column to sort table records Filtering - displays a menu that allows to filter by table records Search - displays a menu that allows to search through table records Column Selection - displays a menu that allows to show and hide columns Export - allows to export data into an Excel spreadsheet Paging (Page Size) - if true, then it is possible to set the default amount of records per page Show Table Name Column - if there’s more than one source for the Feature Table, then it is possible to display the Table Name column that will determine which entry comes from which table Loading Table Data - allows to limit the loading of data in the Feature Table until the query is created Save Filter Data - if true then applied filter parameters are preserved when navigating the pages till the page is reloaded or filter parameters are reset
Columns	Represent fields from the source table Checkbox is a default column Columns can be added manually via Add Column Columns can be added automatically via Generate Columns: select an appropriate table select all the necessary fields Column Settings: Header Text - any text that represents a column name can be added Field - should correspond to a field in a table Width - can be set any appropriate width. If set to 0 then the width will be automatically adjusted Lookup - lookup should be added if this is a lookup field URL Type - if the field represents a URL then it can be displayed as a Link or Button Sign - if selected, displays a sign near the value in the cell Visible - determines if the column is visible or hidden by default. If hidden it can be selected in Columns Selection menu (if it is enabled) Readonly - determines if this column will be editable when the Inline Editing action is enabled Add Theme Config - allows to select a color for a field. Colors should be created in advance on the Themes page. Widget preview should be loaded to display Theme configuration settings Hide Time For Date Fields - when checkbox is selected, the time in the date fields is being hidden, and only the date is visible	Add Column Generate Columns Column Settings
Slider Configuration	Slider ID Slider is an element that is shown when double-clicking on the table record (e.g. Feature Attributes widget can be placed in a slider) Slider should be created in advance and specified for a table in the Slider ID field
Slider Configuration	Slider Title Field The slider title determines whether a title will be set for a sider The slider title can be empty or it can display information from a specific field To display information from a specific field this field must be selected in the Slider Title Field
Actions	Table Actions Enables and disables Inline Editing options Allow Add Allow Edit Allow Delete Allow Edit Attachments When any feature from the settings is active, it becomes accessible to both Studio and Web users
	Allow Add Adds a button to the Feature Table by clicking on which a modal window is displayed, its fields must be filled in to create a new feature table record. Add New Record Fields Fields will be visible in the Create Record form Fields can be added manually via Add Column Fields can be added automatically via Generate Columns Add New Record Validation Allows to configure validation for the modal window for the Create Record form The following can be validated: Any field type - required field String - Min/Max Length, Pattern Numeric - Min/Max numbers Date - Min/Max Dates
	Allow Edit Adds a button to the Feature Table by clicking on which a feature table record can be edited Readonly columns will not be editable
	Allow Delete Adds a button to the Feature Table by clicking on which a feature table record can be deleted
	Allow Edit Attachments Adds a button to the Feature Table by clicking on which attachments of the record can be edited
Related Layers	If the Allow Edit action is enabled then this field is visible All related layers that should receive the same changes that the feature should be added here

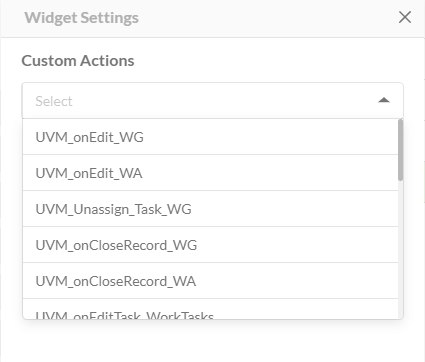

Custom Actions	If the Allow Add action is enabled then this field is visible If any additional actions need to be performed when adding records to the table, they should be created and added here
Roles	Allows to set up field configuration for different project roles Field visibility, read-only status, field type, lookup, etc. could be changed for user groups with different access levels inside the same widget Allows to manage Add/Edit/Delete rights for every Role Any Where Clause can be set up for each Role separately. Therefore, each Role will be able to see only the corresponding data

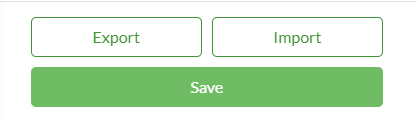

Save	Saves configuration
Export / Import	Please see the article on this topic Widget Export and Import
