Assign Panel

Serves to configure a business flow that allows assigning and unassigning tasks to a specific work record.

When configured, it displays two tables with available and assigned tasks that are shown when the work record is activated (double-clicked).

Assign Panel configuration settings

Field	Description	Visualization
Name	Can be set any name The name will be visible in Clearion Web	Field in Studio Visualization in the Clearion Web
Work Record Configuration	Work Record Source Table Source represents a table where a specific work record is stored (e.g. Work Group, Work Assessment, etc.) Source table should be initially added to Data Source > Feature Tables to be available in the Source dropdown
	Work Record Primary Key A specific field in a work record source tables If the value of the Task Field Key does not equal the value of the Task Field Value then such a task will not be displayed in the widget Assigned Tasks table for a specific work record
	Work Record Closed State The status of the closed state for the work record. If the work record status corresponds to the value in this field then in CW this widget will display the notification - This record is in closed status.
Tasks Source Table (s)	Represent a table or a set of tables where tasks assigned to a specific work record are stored Task Entities tables should be initially added to Data Source > Feature Tables to be available in the Source dropdown
Available Tasks Configuration	Available Tasks Where Clause SQL expression that forms a query by which only certain records from the task source tables will be displayed in the widget Available Tasks table E.g.: (WORKGROUP_FK IS NULL AND WORKTERRITORYID = '{WORKTERRITORYID}' AND STATUS = 3) - this expression retrieves only those records where WORKGROUP_FK value is empty, WORKTERRITORYID in a source table equals WORKTERRITORYID in a tasks table are equal, and Status field value equals 3 Assigned Tasks Where and Available Tasks Where are combined into one request using the OR operator
	Available Tasks Columns Columns for the Assigned Tasks table Columns can be added manually via Add Column Columns can be added automatically via Generate Columns: select an appropriate table select all the necessary fields Column Settings: Header Text - can be added any text that represents a column name Field - should correspond to a field in a table Width - can be set any appropriate width. If set to 0 then the width will be automatically adjusted Lookup - lookup should be added if this is a lookup field URL Type - displays a URL link as a link or a button Sign - a specific sign can be displayed near the field value, e.g. % Visible - if true then the column is visible by default. If false the column is hidden by default Add Themes Config - color theme can be added to a specific field value Delete column - column will be deleted from the widget	Add Column Generate Column Column Settings

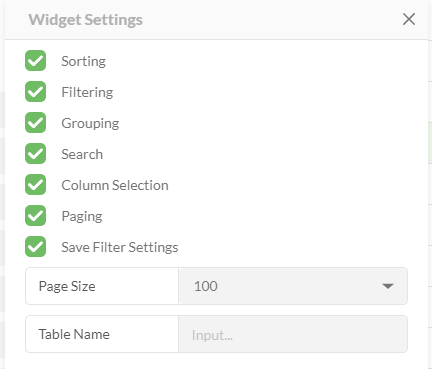

	Available Tasks Table Settings Settings for the Assign Table - when enabled, the corresponding option is available for the table: Show Zoom And Highlight - allows to show or hide Zoom And Highlight buttons for the widget Sorting - sorting a column ascending or descending Filtering - filters records by specific parameters Grouping - groups records by a field Search - search field for a table Columns selection - allows to select columns that are hidden by default Export - allows to export data into an Excel spreadsheet Paging - when enabled, allows setting the number of records on a page. When disabled, all records are displayed on one page Save Filter Settings - if true then applied filter parameters are preserved when navigating the widget’s tabs till the widget is closed or filter parameters are reset Table Name - specifies the name of the Available Tasks table in CW Show Zoom And Highlight - The checkbox 'Show Zoom And Highlight' is enabled (set to true) by default, allowing users to zoom in and highlight selected records on the map. In some cases Zoom and Highlight features are redundant in widgets, so user can hide these buttons by unchecking the box
Assigned Tasks Configuration	Assigned Tasks Where Clause SQL expression that forms a query by which only certain records from the task source tables will be displayed in the widget Assigned Tasks table The request will be sent to each of the specified Task tables E.g.: (WORKGROUP_FK = '{WORKGROUP_PK}' AND STATUS > 3) - this expression retrieves only those records where WORKGROUP_FK value equals WORKGROUP_PK and Status field value equals or higher then 3 Assigned Tasks Where and Available Tasks Where are combined into one request using the OR operator
	Assigned Tasks Filter Key A specific field in an Assigned Tasks source tables If the value of the Assigned Tasks Filter Key equals the value of the Work Record Primary Key, then such a task will be displayed in the widget Assigned Tasks table for a specific work record
	Assigned Tasks Columns Columns for the Assigned Tasks table Columns can be added manually via Add Column Columns can be added automatically via Generate Columns: select an appropriate table select all the necessary fields Column Settings: Header Text - can be added any text that represents a column name Field - should correspond to a field in a table Width - can be set any appropriate width. If set to 0 then the width will be automatically adjusted Lookup - lookup should be added if this is a lookup field URL Type - displays a URL link as a link or a button Sign - a specific sign can be displayed near the field value, e.g. % Visible - if true then the column is visible by default. If false the column is hidden by default Add Themes Config - color theme can be added to a specific field value Delete column - column will be deleted from the widget	Add Column Generate Column Column Settings
	Assigned Tasks Table Settings Settings for the Assign Table - when enabled, the corresponding option is available for the table: Sorting - sorting a column ascending or descending Filtering - filters records by specific parameters Grouping - groups records by a field Search - search field for a table Columns selection - allows to select columns that are hidden by default Paging - when enabled, allows setting the number of records on a page. When disabled, all records are displayed on one page Save Filter Settings - if true then applied filter parameters are preserved when navigating the widget’s tabs till the widget is closed or filter parameters are reset Table Name - specifies the name of the Available Tasks table in CW Show Zoom And Highlight - The checkbox 'Show Zoom And Highlight' is enabled (set to true) by default, allowing users to zoom in and highlight selected records on the map. In some cases Zoom and Highlight features are redundant in widgets, so user can hide these buttons by unchecking the box
Custom Actions	Custom actions that determine behavior for such triggers as the Assign and Unassign buttons should be created and added
Role	Allows to hide the widget for the selected role If all Slider widgets are hidden for a particular role, the Slider itself will be hidden for that role
Save	Saves the configuration The button is disabled till the source tables are added for both work record and tasks
Export / Import	Please see the article on this topic Widget Export and Import
